Kit of parts

Below is listing of parts included in the kit sold on Tindie.

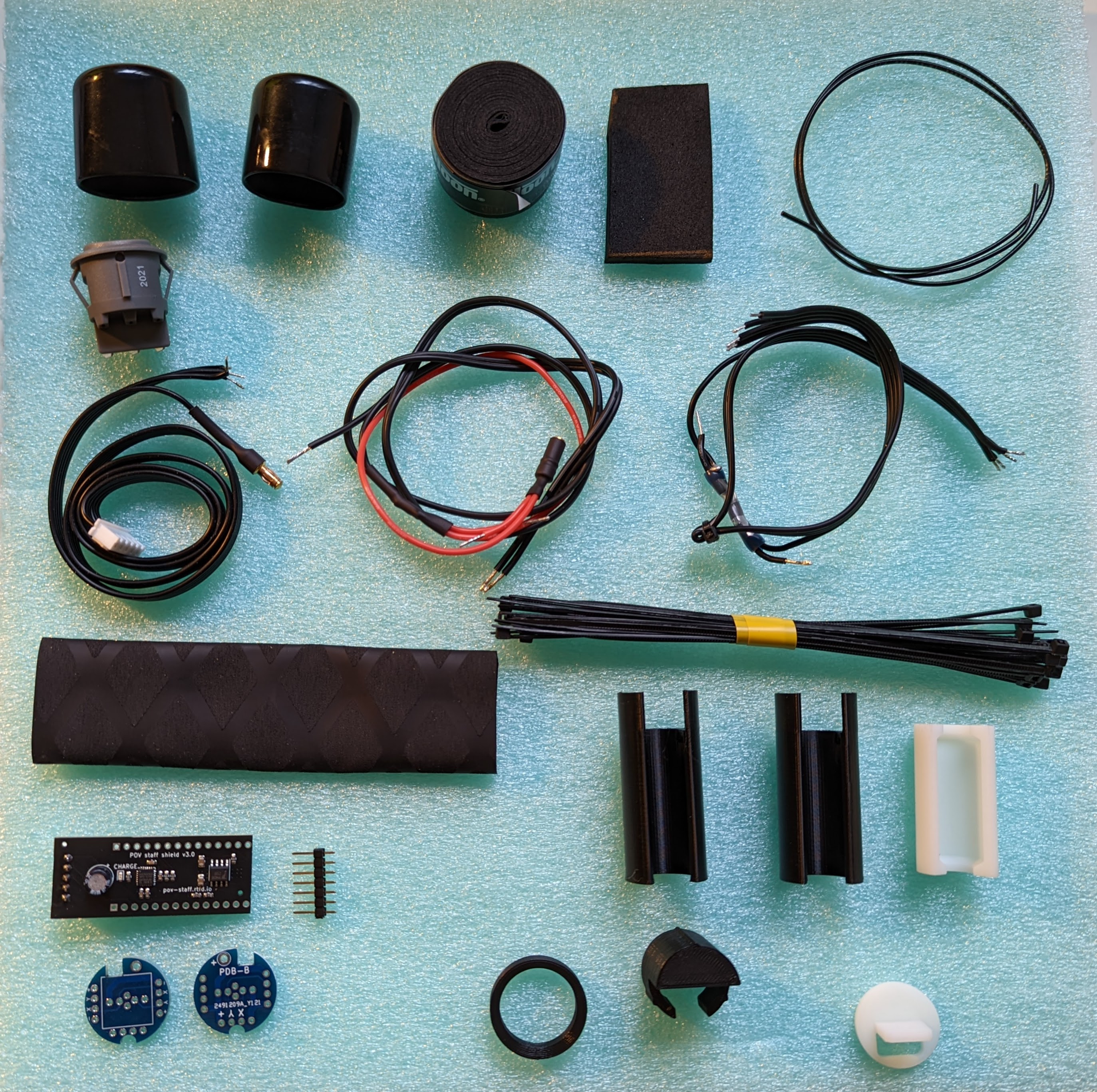

Kit of parts

  1. Itsy Bitsy M4 microcontroller, pre-programmed (not shown).

  2. Custom-made POV controller for ItsyBitsy, containing Inertial Motion Unit, battery charge circuit, and more.

  3. Two Power Distribution Boards (PDB). Note: the PDB exists in two variants, PDB-A and PDB-B. Choose the variant that matches the order of signals on your LED strip (see below)

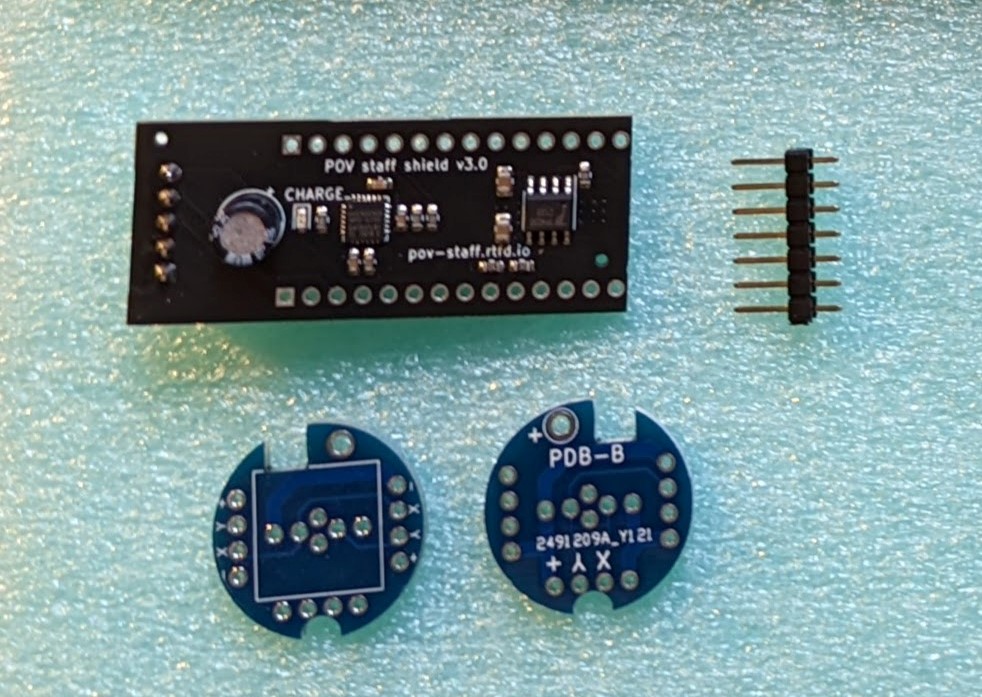

POV shield and PDB

  1. Three wire harnesses:

    • 4-wire, 28 cm battery wire harness (black)

    Battery wire harness

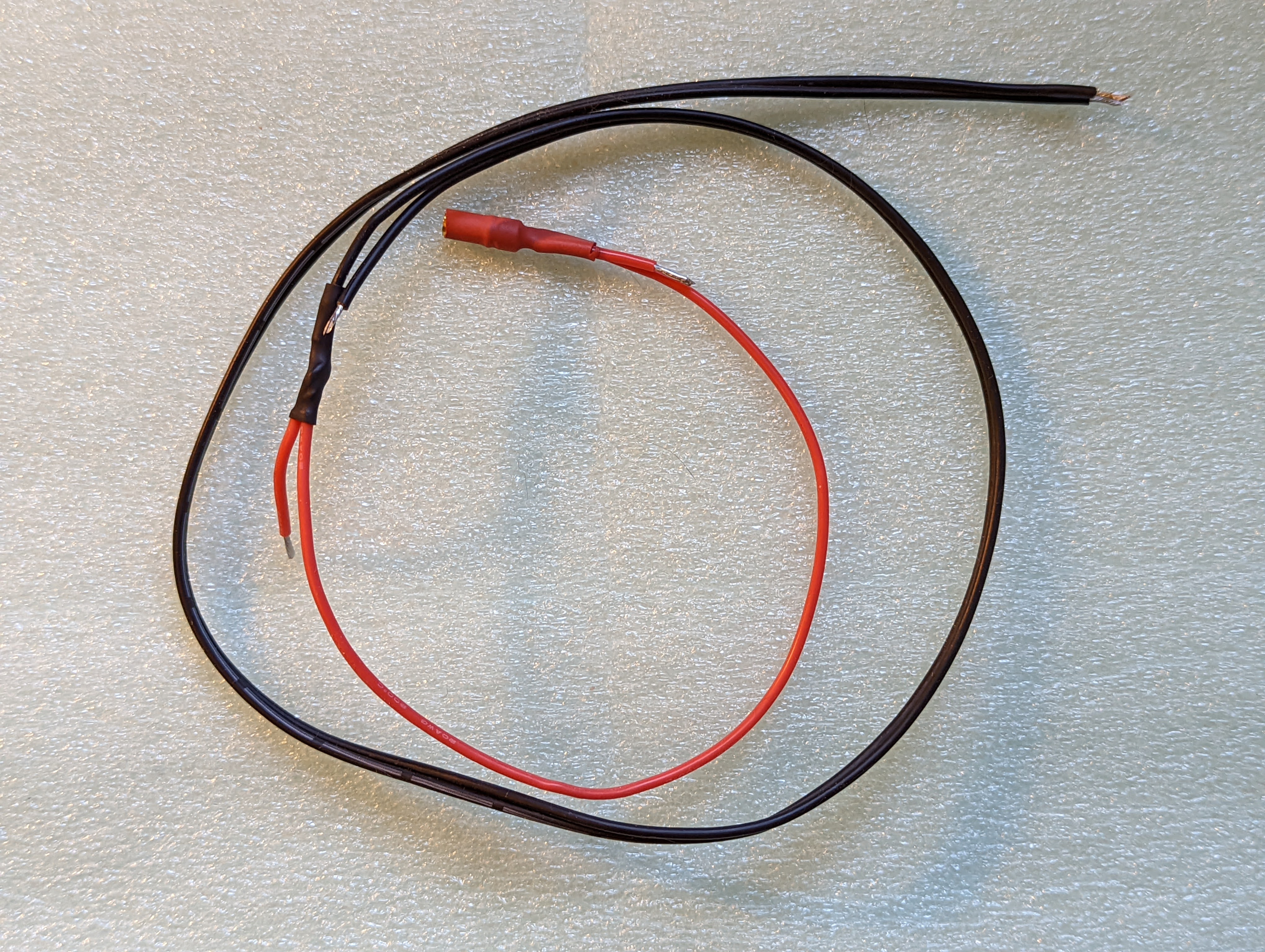

    • Battery and switch wire harness (long, with red wire)

    Battery wire harness

    • Controller wire harness (5 wire, 55cm, black, with JST XH connector at one end)

    Controller wire harness

  2. A length of solid core 22 AWG wire, to use as LED leads.

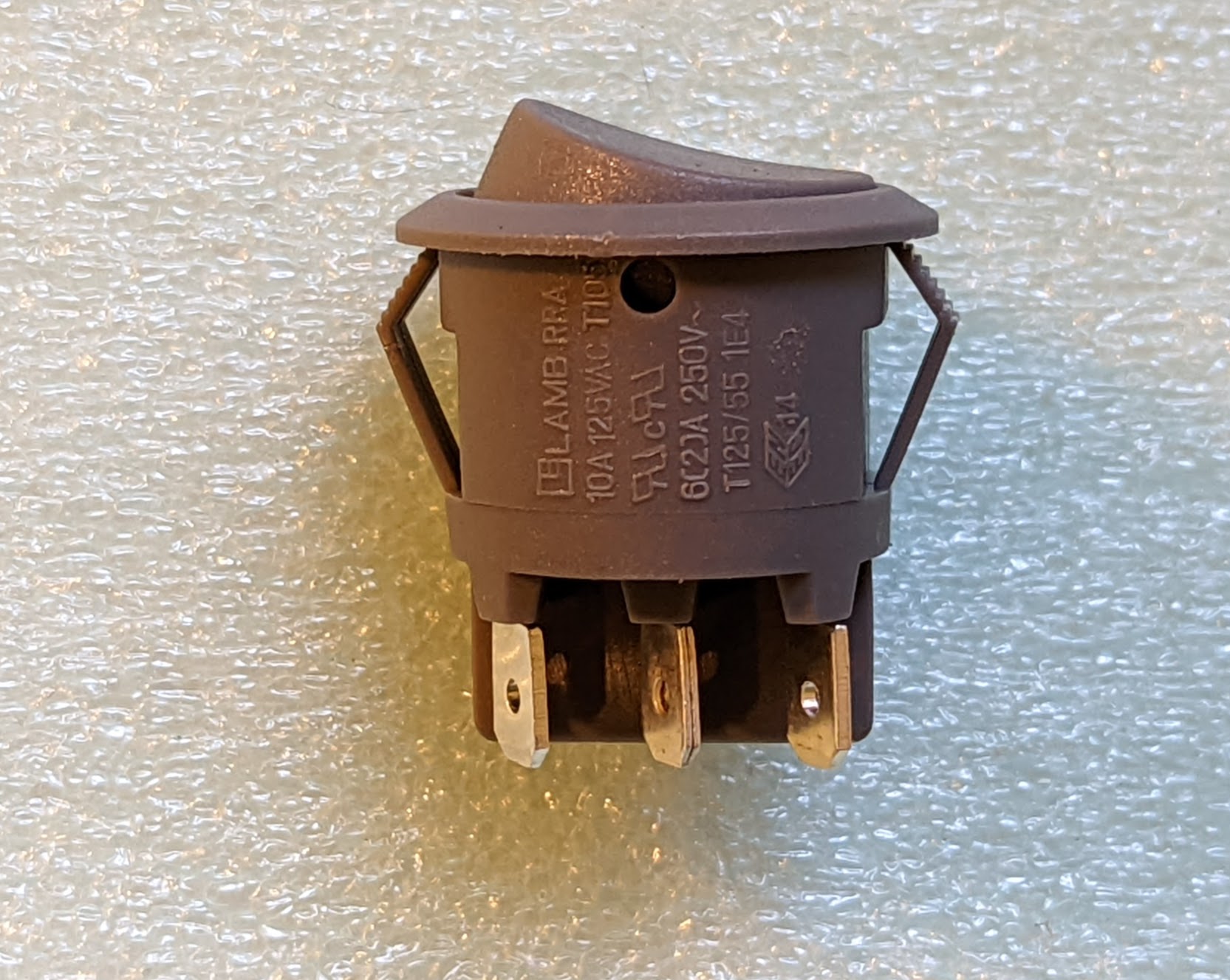

  3. A rocker switch

Controller wire harness

  1. Shrink tubing: 12 cm of 20mm diameter tubing

    Shrink tubing

  2. Two PVC endcaps

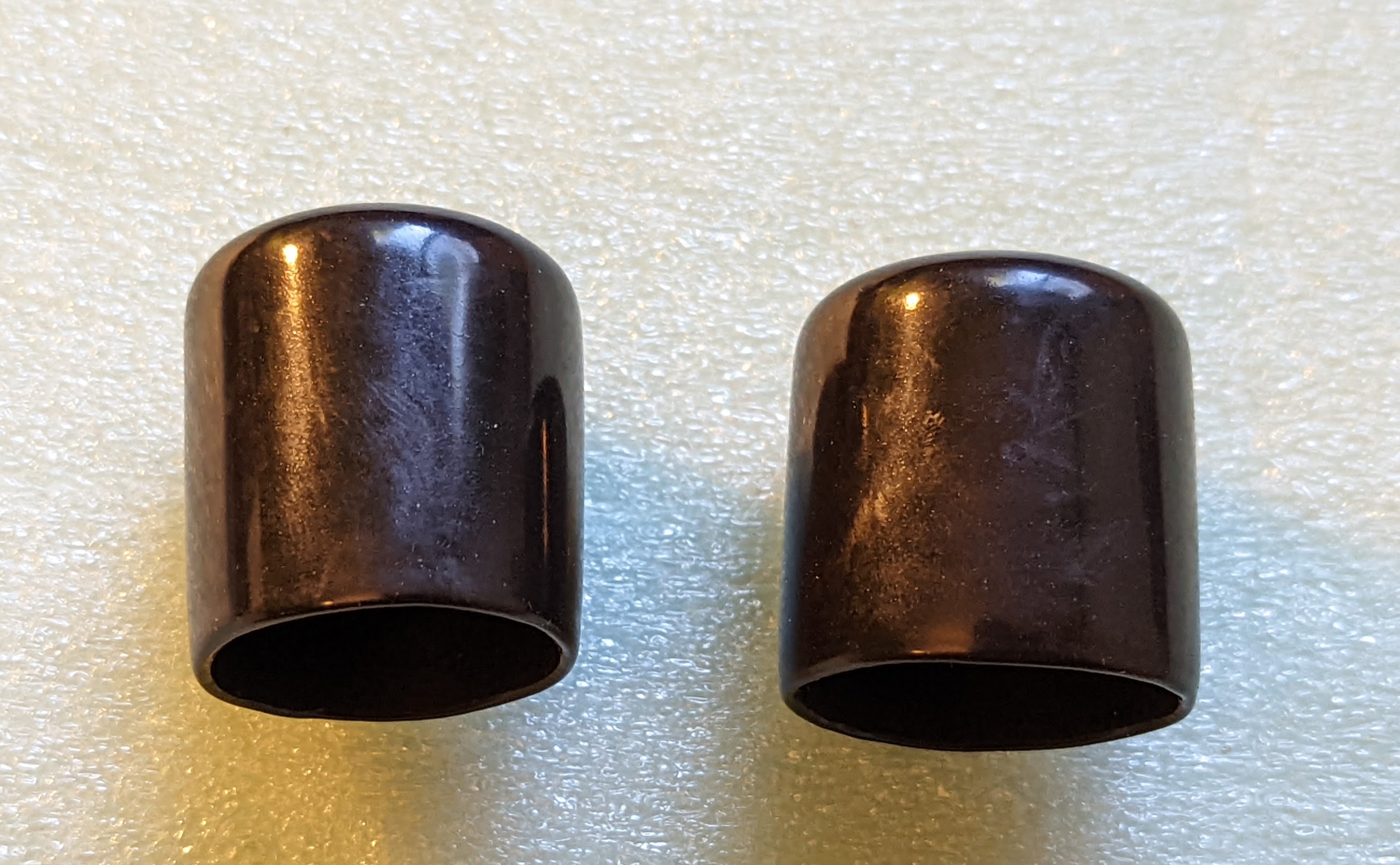

    PVC endcaps

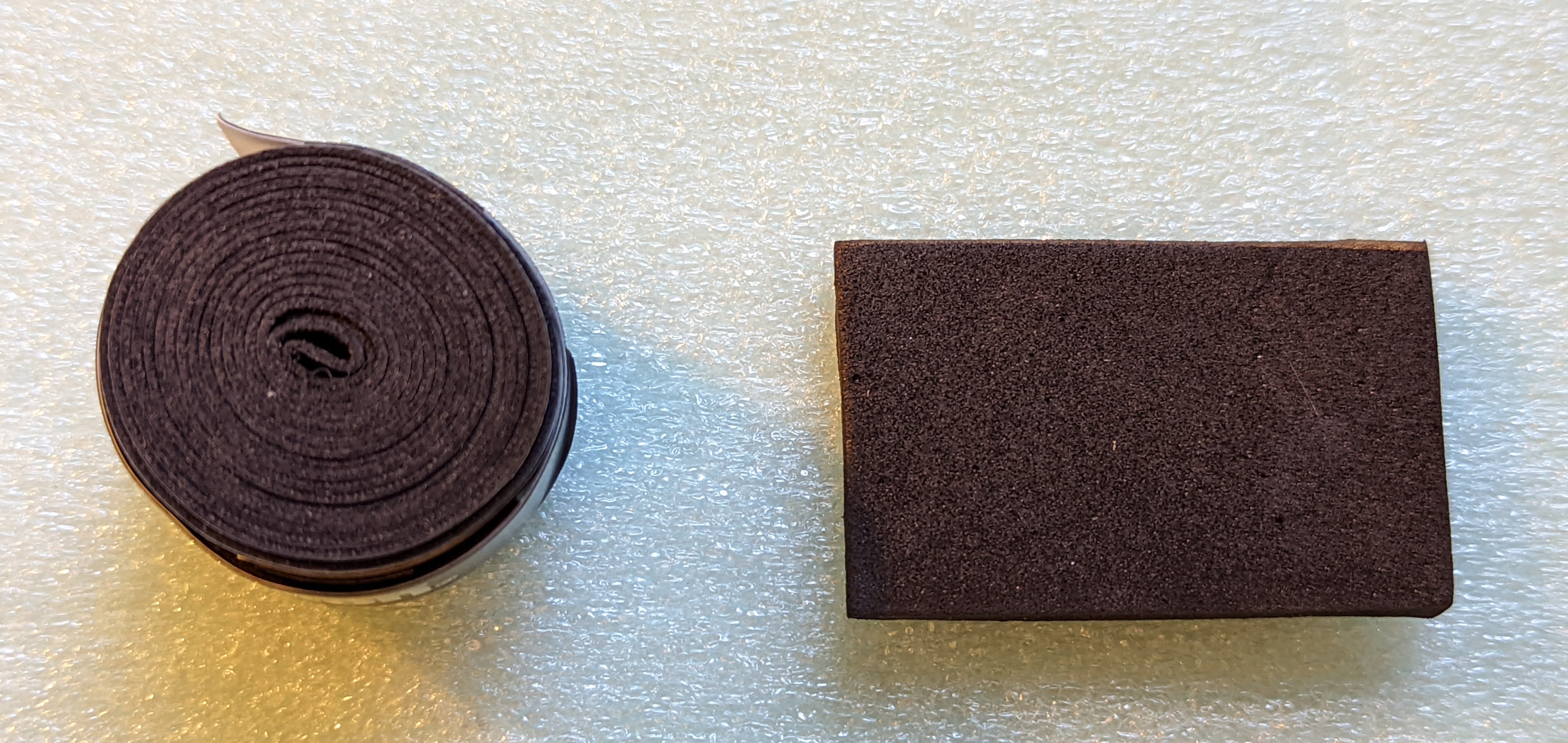

  3. Tennis grip tape

  4. EVA foam (6mm thick)

    Shrink tubing

  5. Zipties (2mm wide)

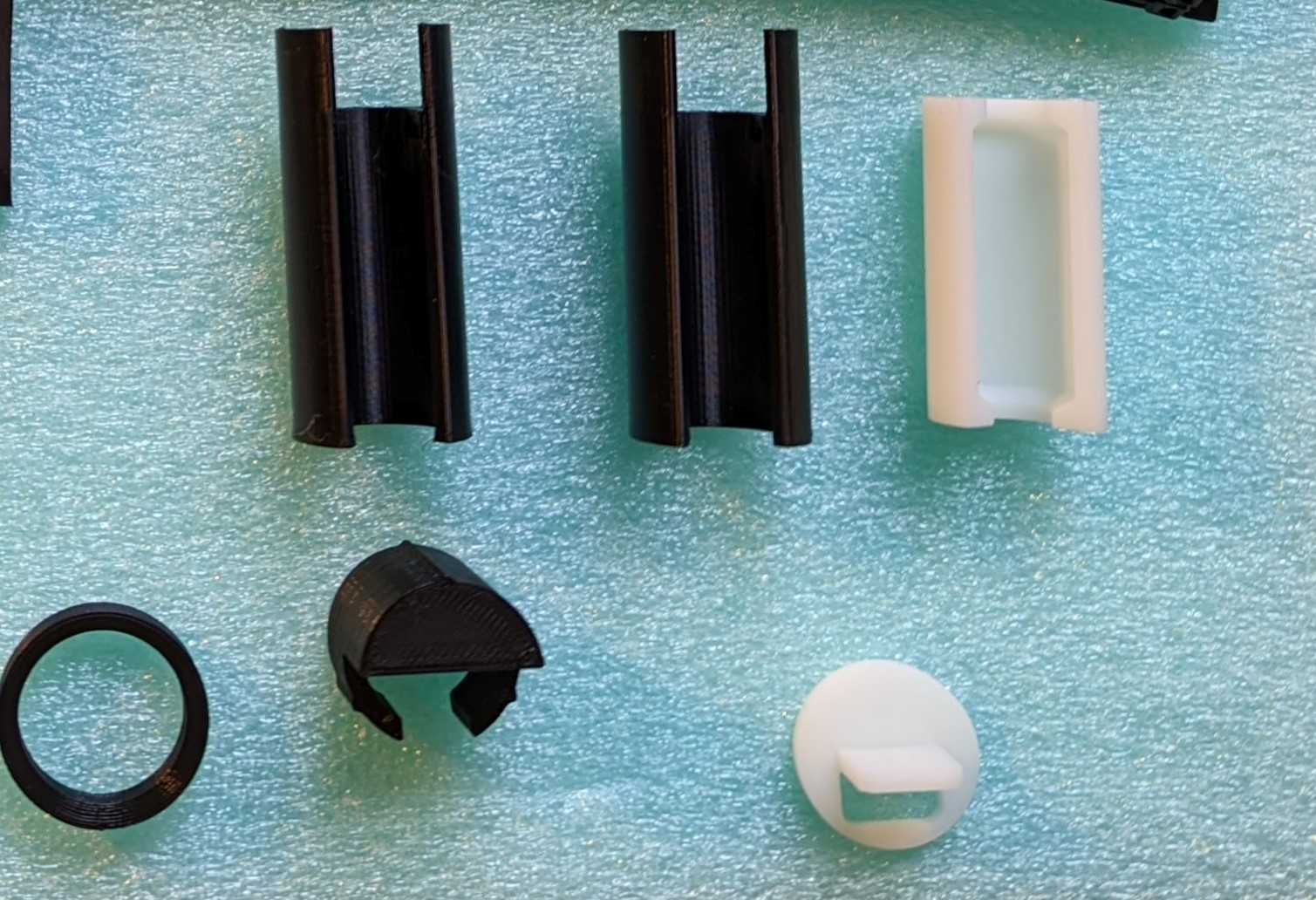

  6. (Optional) Set of 3d printed spacers (colors may vary)

    Shrink tubing

Power Distribution Board variants

As mentioned above, there are two variants of the kit which contain different Power Distribution Boards: PDB-A and PDB-B. The correct option for you depends on the order of signals on your LED strips; unfortunately, there is no standard order.

Place the strip horizontally so that the signal travels from left to right.

  • If the top signal is Ground (usually labeled G) and bottom signal is 5V, then you need variant A.

    Signal order for variant A

  • If the top signal is 5V and bottom signal is Ground, you need variant B.
